Max. Speed: 16000r/min
Max. RCF: 17800xg
Max. Capacity: 40ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> High-speed Microlitre Centrifuges

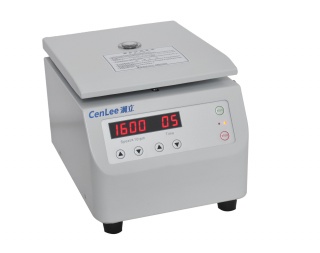

Small High Speed Microcentrifuge
Model: TG16-W
|
Features
- Microprocessor-based controlled with user-friendly operational panel and bright LED display. Seperation protocols can be automatic stored.
- Brushless AC frequency motor with a superspeed shaft for smooth running and free maintanence.
- Multistage damping system for small vibration and low noise.
- Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
- Designed with various protection devices for maximum operational safety, such as lid lock system, over-speed detection, imbalance detection and so on. Rotor can be autoclavable.
- Unique air guide design for small temperature rise to effectively protect samples.
Specifications
| Microlitre Centrifuge, with rotor | |
| Model | TG16-W |
| Max.Speed (r/min) | 16000 |
| Max. RCF (x g) | 17800 |
| Max. Capacity (places x ml) | 12 x 1.5/2.2 |
| Control | Microprocessor |
| Drive | Brushless Motor |
| Speed Range (r/min) | 300-16000 |
| Speed Control Accuracy (r/min) | ±20 |
| Timer Range (min) | 1-99 |
| Noise (dB) | ≤ 58 |
| Power Supply V (Hz) | 220/110V (50/60), 3A single phase |
| Dim. (W x D x H) mm | 220 x 290 x 205 |
| Weight (kg) | 12 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 1.5/2.2 | 16000 | 17800 | 0.1-2.2 | Available |
| Fixed Angle Rotor | 2 | 8 x 5ml | 13000 | 11500 | 0.1-5 | Available |
