Max. RPM: 12000
Max. RCF : 14800 x g
Max. Capacity: 24 x capillary
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> High-speed Microlitre Centrifuges

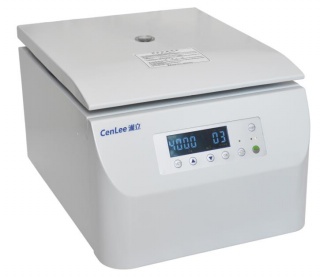

Hemotacrit Centrifuge
Model: TG12M
|
Features
- Controlled by microcomputer with user-friendly panel and large LCD display. Running values can be automatically stored for the repetitive operation.
- Auto rotor identification prevents the rotor from running above its maximum speed.
- Unique damping structure ensures tiny vibration and lower noise.
- Steel body and stainless steel chamber for easy cleaning and durability.
- RCF mode make you can start the run directly by RCF and supervise RCF at any time.
- Fault diagnosis system detects various toubles such as over-speed, lid-lock, imbalance and so on, furtherly corresponding error codes are displayed. Rotor can be autoclavable.
- Special air guide design ensures small temperature rise to effectively protect the sample.
Specifications
|
Hemotacrit Centrifuge, with rotor
|
|
| Model | TG12M |
| Max.Speed (r/min) | 12000 |
| Max. RCF (x g) | 14800 |
| Max. Capacity (ml) | 24 capillaries |
| Control | Microprocessor |
| Drive | Brushless DC Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-12000 |
| Speed Control Accuracy (r/min) | ±20 |
| Timer Range (min) | 1-99 |
| Noise (dB) | ≤ 62 |
| Power Supply V (Hz) | 220/110V (50/60), 5A single phase |
| Dim. (W x D x H) mm | 498 x 307 x 245 |
| Weight (kg) | 16 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |

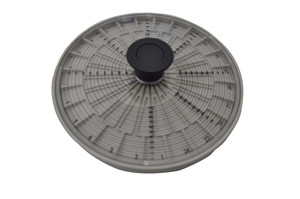

| Hematocrit Rotor | 1 | 24 x capillaries | 12000 | 14800 | 75mm | Unavailable |
