Max. RPM: 16500
Max. RCF : 21530 x g
Max. Capacity: 24 x 1.5/2.0ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Benchtop Centrifuges
> High-speed Microlitre Centrifuges

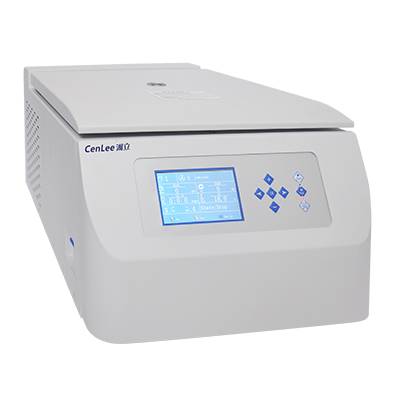

Benchtop High Speed Refrigerated Centrifuge
Model: CTH1650R
|
Features
- Microprocessor-based controlled and frequency conversion motor drived. Its motor is maitenance – free and run quietly even at high speeds.
- A memory function for parameters is available for repetitive seperation operation.
- Simply panel with Large LCD display for user-friendly operation. Both set paramenters and actural run conditions can be dispayed and modified in real time.
- With unique damping system, 10 acceleration and braking rates to fast for efficient sample separation, or slow for protection of delicate samples.
- Low-noise output lower than 55dB offer you a comfortable reseach environment.
- Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy.
- Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
- Automatic rotor recognization fuction ensures the maximum speed are not exceeded to protect the rotor and sample for safer seperation.
- Excellent cooling performance ensure all rotors, at full load, can maintain at -4°C at full speeds.
Specifications
| Benchtop Microliter Refrigerated Centrifuge, without rotor | |
| Model | CTH1650R |
| Max.Speed (r/min) | 16500 |
| Max. RCF (x g) | 21532 |
| Max. Capacity (ml) | 80 |
| Control | Microprocessor |
| Drive | AC Frequency Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-16500 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy | ±1 |
| Timer Range(hour:min:sec) | 0-99:59:59 |
| Noise (dB) | ≤65 |
| Power Supply V (Hz) | 220/110V (50/60), 10A single phase |
| Dim. (W x D x H) mm | 415 x 660 x 320 |
| Weight (kg) | 55 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 1.5/2.2 | 16500 | 18360 | 0.25-2.2 | Available |
| Fixed Angle Rotor | 2 | 12 x 5 | 12000 | 10142 | 0.25-5 | Available |
| Fixed Angle Rotor | 3 | 24 x 1.5/2.2 | 15000 | 21532 | 0.25-2.2 | Available |
| Fixed Angle Rotor | 4 | 30 x 1.5/2.2 | 12000 | 16270 | 0.25-2.2 | Available |
| Fixed Angle Rotor | 5 | 48 x 0.5 | 12000 | 10920 | 0.5 | Unavailable |
| Fixed Angle Rotor | 6 | 6 x 8 x 0.2 strip | 13000 | 16020 | 0.2 | Unavailable |
| Fixed Angle Rotor | 7 | 18 x 0.5 | 16000 | 15300 | 0.5 | Unavailable |
| Fixed Angle Rotor | 8 | 8 x 10 | 12000 | 12900 | 0.25-2.2 | Available |
