Max. RPM: 16600
Max. RCF: 21532 x g
Max. Capacity: 4 x 100ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> High-speed Centrifuges

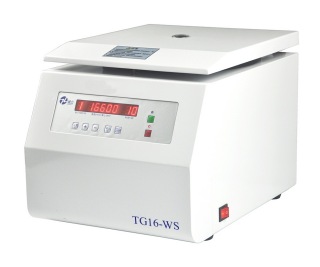

Benchtop High Speed Centrifuge
Model: TG16-WS
|
Features
- Microprocessor-based controlled with user-friendly operational panel. LED or LCD display for your option. Frequency conversion motor drived without powder pollution. Seperation protocols can be automatic stored.
- Multistage damping system for small vibration and low noise.
- Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
- In automatic RCF/RPM mode, you can set runs to a desired speed or g-force and moniter them in real time.
- Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection, imbalance detection and so on.
- Unique air guide design for small temperature rise to effectively protect samples.
Specifications
| Benchtop High Speed Medium Capacity Centrifuge, with rotor | |
| Model | TG16-WS |
| Max.Speed (r/min) | 16600 |
| Max. RCF (x g) | 21532 |
| Max. Capacity (ml) | 400 |
| Control | Microprocessor |
| Drive | AC Frequency Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-16600 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy | ±1 |
| Timer Range(min:sec) | 1-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110V (50/60), 10A single phase |
| Dim. (W x D x H) mm | 345 x 450 x 335 |
| Weight (kg) | 25 |
Rotors
| Rotor Type | Rotor No. | Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 1.5/2.2 | 16600 | 19200 | 0.5-2.2 | Available |
| Fixed Angle Rotor | 2 | 12 x 5 | 15000 | 16099 | 0.5-5 | Available |
| Fixed Angle Rotor | 3 | 12 x 10 | 12000 | 14800 | 0.5-10 | Available |
| Fixed Angle Rotor | 4 | 12 x 15 | 10000 | 11068 | 0.5-15 | Available |
| Fixed Angle Rotor | 5 | 8 x 20 | 13000 | 17194 | 0.5-20 | Available |
| Fixed Angle Rotor | 6 | 6 x 50 | 11000 | 12840 | 0.5-50 | Available |
| Fixed Angle Rotor | 7 | 24 x 1.5/2.2 | 15000 | 21532 | 0.5-2.2 | Available |
| Fixed Angle Rotor | 8 | 4 x 100 | 10000 | 10856 | 0.5-100 | Available |
| Fixed Angle Rotor | 9 | 48 x 0.5 | 12000 | 12650 | 0.5 | Unavailable |
| Microplate Rotor | 10 | 2 x 2 x 48wells? | 3000 | 1400 | 0.2 | Unavailable |
