Max. RPM: 5000
Max. RCF: 4390 x g
Max. Capacity: 4 x 100ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> Low-speed Centrifuges

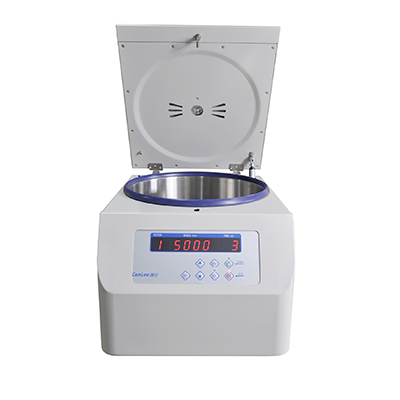

Benchtop Low Speed Centrifuge
Model: XL5A
|
Features
- Microprocessor-based controlled with user-friendly operational panel and bright LED display. Seperation protocols can be automatic stored.
- AC frequency motor drived with superspeed shaft for smooth running and free maintanence.
- Steel body, stainless steel chamber and imported key components for easy cleaning and durability. Multistage damping system for small vibration and low noise.
- Lid interlocking device greatly increases the operational safety. Air conduction system reduces much heat to protect the control board and avoid the aging of circuits.
- Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
- Unique air guide design for small temperature rise during seperation to effectively protect samples.
Specifications
| Benchtop Low Speed Centrifuge, with rotor | |
| Model | XL5A |
| Max.Speed (r/min) | 5000 |
| Max. RCF (x g) | 4390 |
| Max. Capacity (ml) | 4 x 100 |
| Control | Microprocessor |
| Drive | DC Brushless Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-5000 |
| Speed Control Accuracy (r/min) | ±30 |
| Timer Range(min) | 1-99 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 5A, single phase |
| Dim. (W x D x H) mm | 460 x 590 x 405 |
| Weight (kg) | 40 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 10 | 5000 | 4020 | 5-10 | Available |
| Swing-out Rotor with tube holders | 2 | 4 x 100 | 5000 | 4390 | 5-100 | Available |
| 8 x 50 | 4000 | 2810 | 5-50 | Available | ||
| 4 x 50 | 5-50 | Available | ||||
| 32 x 10/15 | 2-15 | Available | ||||
| 16 x 10/15 | 2-15 | Available | ||||
| 8 x 100 | 5-100 | Available | ||||
| Swing-out Rotor with tube holders | 3 | 48/40 x 5 | 4000 | 2810 | 5 | Unavailable |
| Microplate Rotor | 4 | 2 x 2 x 96wells | 4000 | 2300 | 0.2 | Unavailable |
