Max. RPM: 4000
Max. RCF: 2580 x g
Max. Capacity: 240ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> Low-speed Centrifuges

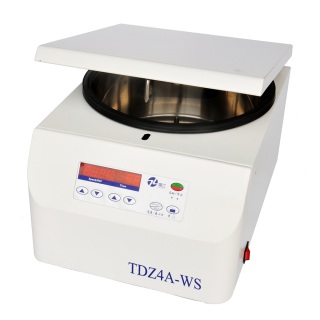

Low Speed Universal Centrifuge
Model: TDZ4A
|
Features
- Microprocessor-based controlled and DC brushless motor drived for smooth running and low noise.
- Steel boby with compact and streamline design and unique damping system for automatic balancing function.
- User-friendly operational panel wich automatic RCF/RPM mode.
- Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
- Ventilated centrifuge for small temperature rise during seperation.
- Various rotors designed for different capacity tubes for your option.
Specifications
| Small Low Speed Centrifuge, with rotor | |
| Model | TDZ4A |
| Max.Speed (r/min) | 4000 |
| Max. RCF (x g) | 2580 |
| Max. Capacity (ml) | 240 |
| Control | Microprocessor |
| Drive | DC Brushless Motor |
| Speed Range (r/min) | 100-4000 |
| Speed Control Accuracy (r/min) | ±30 |
| Timer Range(min) | 1-99 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 5A, single phase |
| Dim. (W x D x H) mm | 360 x 470 x 250 |
| Weight (kg) | 16 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 24 x 10 | 4000 | 2580 | 5-15 | Available |
| Swing-out Rotor with tube holders | 2 | 4 x 50 | 4000 | 2580 | 5-20 | Available |
| Swing-out Rotor with tube holders | 3 | 12 x 15 | 4000 | 2580 | 5-10 | Available |
| 12 x 2 x 5 | 4000 | 2580 | 5 | Unavailable | ||
| Fixed Angle Rotor | 4 | 30 x 5/7 | 4000 | 2580 | 5-7 | Unavailable |
