Max. RPM: 5000
Max. RCF: 4030 x g
Max. Capacity: 240ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> Low-speed Centrifuges

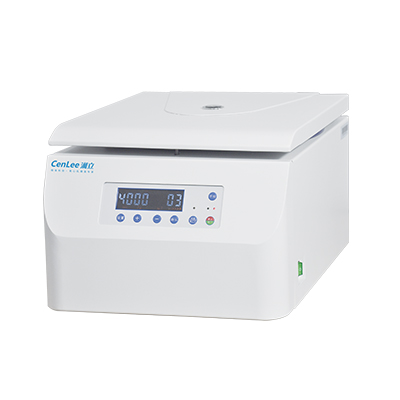

Low Speed Universal Centrifuge
Model: CTL500
|
Features
- Microprocessor controlled and DC brshless motor drived.
- LED digital display.
- Automatic calculation for RCF and you can control run by RCF.
- Special damper for automatic balancing function.
- Electric lik lock system for operational safety.
- Various stainless steel racks for easy replacement.
- Remaining time is displayed in seconds when it is less than 1 minutes.
Specifications
| Small Low Speed Universal Centrifuge, without rotor | |
| Model | CTL500 |
| Max.Speed (r/min) | 5000 |
| Max. RCF (x g) | 4030 |
| Max. Capacity (ml) | 240 |
| Control | Microprocessor |
| Drive | DC Brushless Motor |
| Speed Range (r/min) | 100-5000 |
| Speed Control Accuracy (r/min) | ±30 |
| Timer Range(min) | 1-99 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 5A, single phase |
| Dim. (W x D x H) mm | 360 x 470 x 250 |
| Weight (kg) | 16 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 24 x 10 | 5000 | 4030 | 5-15 | Available |
| Swing-out Rotor with tube holders | 2 | 4 x 50 | 4200 | 2760 | 5-20 | Available |
| 4 x 4 x 15 | 4200 | 2760 | 5-15 | Available | ||
| 4 x 6 x 5 | 4200 | 2760 | 5 | Unavailable |
