Max. RPM: 5300
Max. RCF: 5010 x g
Max. Capacity: 4 x 250ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> Large Capacity Centrifuges

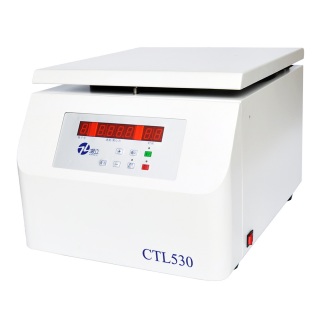

Benchtop Low Speed Centrifuge
Model: CTL530
|
Features
- Microprocessor controlled with user-friendly operational panel.
- Frequency converter motor drived, various tube racks for your option.
- Electic lid lock system for operational safety.
- Automatic calculation for RCF and automatic balancing function.
- Large LCD display.
Specifications
| Benchtop Low Speed Large Capacity Centrifuge, without rotor | |
| Model | CTL530 |
| Max.Speed (r/min) | 5300 |
| Max. RCF (x g) | 5010 |
| Max. Capacity (ml) | 4 x 250 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-5300 |
| Speed Control Accuracy (r/min) | ±50 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 58 |
| Power Supply V (Hz) | 220/110 (50/60), 5A, single phase |
| Dim. (W x D x H) mm | 490 x 590 x 405 |
| Weight (kg) | 40 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Swing-out Cross Rotor with tube holders | 1 | 4 x 100 | 5300 | 5010 | 1.5-100 | Available |
| Swing-out Cross Rotor with tube holders | 2 | 4 x 2 x 100 | 4200 | 3100 | 1.5-100 | Available |
| 4 x 2 x 50 | 4200 | 3100 | 1.5-50 | Available | ||
| 4 x 8 x 15 | 4200 | 3100 | 1.5-15 | Available | ||
| Swing-out Cross Rotor with tube baskets | 4 x 16 x 5/7 | 4200 | 3100 | 1.5-7 | Available | |
| 4 x 12 x 5/7 | 4200 | 3100 | 1.5-7 | Available | ||
| Swing-out Cross Rotor with buckets | 4 | 4 x 250 | 4200 | 3550 | 1.5-250 | Available |
| Microplate Rotor | 3 | 2 x 2 x 96wells | 4000 | 2200 | 0.2 | N/A |
