Max. RPM: 5350
Max. RCF: 5030 x g
Max. Capacity: 4 x 750ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Benchtop Centrifuges
> Large Capacity Centrifuges

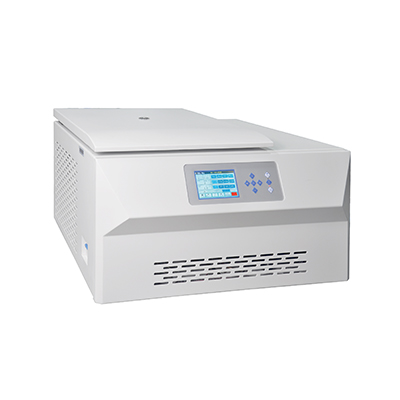

Low Speed Large Capacity Refrigerated Centrifuge
Model: CTL535R
|
Features
- Suitable for a variety of application of radio-immunity, water treatment, biochemistry, seperation and purification of blood, etc.
- Microcomputer control, drived by high frequency conversion motor without powde pollution for long service life, various rotors with tube racks and adapters for your diverse separation needs,. Large LCD or 0.8 LED display for your option.
- User-friendly operational panel. Programable operation function ensures operaters can input speed, time, RCF, accelaration and braking rates at any time. With LCD display, up to 25 protocols can be stored, modified and recalled.
- 9 accelaration and 10 braking rates (0 is for free brake) and 3-level damping system ensure the best seperation result.
- Various protection devices including over-speed, misoperation, speed fault, converter fault, lid lock, stainless steel chamber, imbalance shutdown, etc. to ensure the maximum operational safety.
Specifications
| Benchtop Low Speed Large Capacity Refrigerated Centrifuge, without rotor | |
| Model | CTL535R |
| Max.Speed (r/min) | 5350 |
| Max. RCF (x g) | 5030 |
| Max. Capacity (ml) | 4 x 750 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 50-5350 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 10A, single phase |
| Dim. (W x D x H) mm | 800 x 700 x 400 |
| Weight (kg) | 110 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 50 | 5350 | 5030 | 1.5-50 | Available |
| Swing-out Rotor(500ml) with round buckets | 2 | 4 x 500 | 4000 | 3040 | 5-500 | Available |
| Swing-out Rotor(500ml) with adapter carries | 4 x 250 | 4000 | 3040 | 1.5-250 | Available | |
| Swing-out Rotor(500ml) with microplate carries | 4 x 2 x 96wells | 4000 | 3040 | 5-10 | Available | |
| Swing-out Rotor(500ml) with baskets | 4 x 24 x 5 | 4000 | 3040 | 5 | N/A | |
| 4 x 37 x 7 | 4000 | 3040 | 7 | N/A | ||
| Microplate Rotor | 3 | 2 x 2 x 96wells | 4000 | 2200 | 0.2 | N/A |
| Swing-out Rotor(750ml) with round buckets | 4 | 4 x 750 | 4000 | 3500 | 5-750 | Available |
| Swing-out Rotor(6 places) with round buckets | 5 | 6 x 250 | 4200 | 3500 | 1.5-250 | Available |
| Swing-out Rotor with round buckets | 6 | 4 x 250 | 4200 | 3500 | 1.5-250 | Available |
