Max. RPM: 18500
Max. RCF: 23797 x g
Max. Capacity: 400ml
Temp. Control: N/A
Product Catagories
Products > Benchtop Centrifuges
> General Purpose Centrifuges

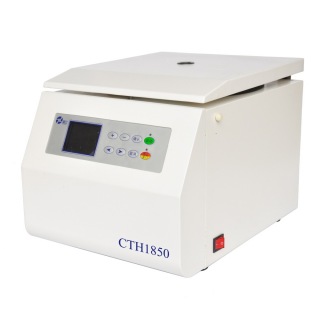

Benchtop Universal Centrifuge
Model: CTH1850
|
Features
- Microprocessor-based controlled and frequency conversion motor drived.
- A memory function for parameters is available for repetitive seperation operation.
- Large LCD display help you easily read all setting parameters and a real time centrifugation status, including rotor capacity and diagnostic information as it occurs.
- With unique damping system, 10 acceleration and braking rates to fast for efficient sample separation, or slow for protection of delicate samples.
- Low-noise output lower than 55dB offer you a comfortable reseach environment.
- Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
- Automatic rotor recognization fuction ensures the maximum speed are not exceeded to protect the rotor and sample for safer seperation.
Specifications
| Benchtop General Purpose Centrifuge, without rotor | |
| Model | CTH1850 |
| Max.Speed (r/min) | 18500 |
| Max. RCF (x g) | 23797 |
| Max. Capacity (ml) | 400 |
| Drive | AC Frequency Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-18500 |
| Speed Control Accuracy (r/min) | ±20 |
| Timer Range (min) | 1-99:59 |
| Noise (dB) | ≤ 55 |
| Power Supply V (Hz) | 220/110 (50/60), 10A, single phase |
| Dim. (W x D x H) mm | 338 x 465 x 330 |
| Weight (kg) | 25 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 1.5/2.2 | 18500 | 23797 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 2 | 8 x 15(conical) | 12000 | 13200 | 0.2-15 | Available |
| Fixed Angle Rotor | 3 | 12 x 10 | 13000 | 17370 | 0.2-10 | Available |
| Fixed Angle Rotor | 4 | 6 x 50(conical) | 12000 | 15285 | 0.2-50 | Available |
| Fixed Angle Rotor | 6 x 50 | 12000 | 15285 | 0.2-50 | Available | |
| Fixed Angle Rotor | 7 | 24 x 1.5/2.2 | 15000 | 21532 | 0.25-2.2 | Available |
| Fixed Angle Rotor | 8 | 48 x 0.5 | 13000 | 16410 | 0.5 | Unavailable |
| Fixed Angle Rotor | 9 | 4 x 100 | 11000 | 13000 | 0.2-100 | Available |
| Swing-out Rotor with Tube Holders | 5 | 4 x 100 | 5000 | 3773 | 15-50 | Available |
| Microplate Rotor | 6 | 2 x 2 x 96wells | 4000 | 2200 | 0.2 | Unavailable |
