Max. RPM: 20500
Max. RCF: 29200 x g
Max. Capacity: 3000ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Benchtop Centrifuges
> General Purpose Centrifuges

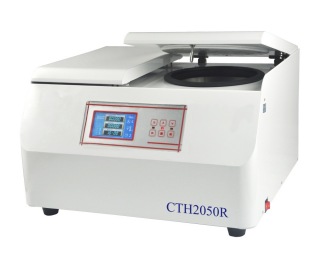

Large Capacity Universal Refrigerated Centrifuge
Model: CTH2050R
|
Features
- Microprocessor-based controlled and frequency conversion motor drived. Its motor is maitenance – free and run quietly even at high speeds.
- A memory function for parameters is available for repetitive seperation operation.
- Simply panel with Large LCD display for user-friendly operation. Both set paramenters and actural run conditions can be dispayed and modified in real time.
- With unique damping system, 10 acceleration and braking rates to fast for efficient sample separation, or slow for protection of delicate samples.
- Low-noise output lower than 55dB offer you a comfortable reseach environment.
- Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy.
- Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
- Automatic rotor recognization fuction ensures the maximum speed are not exceeded to protect the rotor and sample for safer seperation.
Specifications
| Universal Large Capacity Refrigerated Centrifuge, without rotor | |
| Model | CTH2050R |
| Max.Speed (r/min) | 20500 |
| Max. RCF (x g) | 29200 |
| Max. Capacity (ml) | 3000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-20500 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 55 |
| Power Supply V (Hz) | 220/110 (50/60), 10A, single phase |
| Dim. (W x D x H) mm | 680 x 800 x 440 |
| Weight (kg) | 85 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 1.5/2.2 | 20500 | 29200 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 2 | 12 x 5 | 16500 | 19175 | 5 | Available |
| Fixed Angle Rotor | 3 | 12 x 10 | 15000 | 23120 | 10 | Available |
| Fixed Angle Rotor | 6 x 30 | 15000 | 23120 | 30 | Available | |
| Fixed Angle Rotor | 4 | 6 x 50(conical) | 13000 | 17940 | 0.2-50 | Available |
| Fixed Angle Rotor | 6 x 50 | 13000 | 17940 | 0.2-50 | Available | |
| Fixed Angle Rotor | 7 | 24 x 1.5/2.2 | 16500 | 24890 | 0.25-2.2 | Available |
| Fixed Angle Rotor | 8 | 6 x 85 | 12000 | 15805 | 0.5 | Available |
| Fixed Angle Rotor | 9 | 6 x 100 | 10000 | 11960 | 0.2-100 | Available |
| Swing-out Rotor(750ml) with round buckets | 5 | 4 x 750 | 4000 | 3500 | 5-750 | Available |
| Swing-out Rotor(500ml) with round buckets | 6 | 4 x 500 | 4000 | 3040 | 5-500 | Available |
| Swing-out Rotor(500ml) with adapter carries | 4 x 1.5-250 | 4000 | 3040 | 1.5-250 | Available | |
| Swing-out Rotor(500ml) with microplate carries | 4 x 2 x 96wells | 4000 | 3040 | 0.2 | N/A | |
| Swing-out Rotor(500ml) with baskets | 4 x 24 x 5 | 4000 | 3040 | 5 | N/A | |
| 4 x 37 x 7 | 4000 | 3040 | 7 | N/A |
