Max. RPM: 23000
Max. RCF: 33500 x g
Max. Capacity: 3000ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Floor Standing Centrifuges
> General Purpose Centrifuges

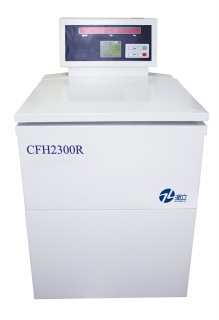

High Speed Refrigerated Centrifuge
Model: CFH2300R
|
Features
- Suitable for a variety of application of radio-immunity, biochemistry, seperation and purification of blood, etc.
- Superior quality: microprocessor-based controlled and brushless high frequency motor drived.
- With large LCD display and powerful CFC-free refrigeration system, its various optional rotors ensure its versality.
- Multifuntional centrifuge both in high speed and in low speeds with large capacity.
- User-friendly operational panel, parameters memory function for repetitive seperation operation.
- Excellent performence: with unique damping system, 9 acceleration and braking rates plus 1 free braking to fast for efficient sample separation, or slow for protection of delicate samples.
- Safe and reliable operation: automatic rotor recognization fuction, designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
Specifications
| Floorstanding General Purpose Refrigerated Centrifuge, without rotor | |
| Model | CFH2300R |
| Max.Speed (r/min) | 23000 |
| Max. RCF (x g) | 33500 |
| Max. Capacity (ml) | 3000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel Rates | 10/10 |
| Programmability | 40 programs |
| Refrigeration | Environmental CFC-free Refrigeration System with R404a refrigerant |
| Speed Range (r/min) | 100-23000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 15A, single phase |
| Dim. (W x D x H) mm | 550 x 680 x 850 |
| Weight (kg) | 110 |
Rotors
| Rotor Type | Rotor No. | Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 12 x 0.5 | 23000 | 26614 | 0.5 | Unavailable |
| Fixed Angle Rotor | 2 | 12 x 1.5/2.2 | 21600 | 33500 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 3 | 12 x 10 | 15000 | 23120 | 0.2-10 | Available |
| Fixed Angle Rotor | 6 x 30 | 15000 | 23120 | 0.2-30 | Available | |
| Fixed Angle Rotor | 4 | 6 x 50(conical) | 13000 | 17940 | 0.2-50 | Available |
| Fixed Angle Rotor | 6 x 50 | 13000 | 17940 | 0.2-50 | Available | |
| Fixed Angle Rotor | 7 | 24 x 1.5/2.2 | 16500 | 26050 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 8 | 6 x 85 | 12000 | 15805 | 0.2-85 | Available |
| Fixed Angle Rotor | 9 | 6 x 100 | 10000 | 11960 | 0.2-100 | Available |
| Fixed Angle Rotor | 10 | 6 x 250 | 8000 | 9159 | 0.2-250 | Available |
| Swing-out Rotor(750ml) with round buckets | 5 | 4 x 750 | 4000 | 3500 | 5-750 | Available |
| Swing-out Rotor(500ml) with round buckets | 6 | 4 x 500 | 4000 | 3040 | 5-500 | Available |
| Swing-out Rotor(500ml) with adapter carries | 4 x 250 | 4000 | 3040 | 1.5-250 | Available | |
| Swing-out Rotor(500ml) with microplate carries | 4 x 2 x 96wells | 4000 | 3040 | 0.2 | Unavailable | |
| Swing-out Rotor(500ml) with baskets | 4 x 24 x 5 | 4000 | 3040 | 5 | Unavailable | |
| 4 x 37 x 7 | 4000 | 3040 | 7 | Unavailable |
