Max. RPM: 6000
Max. RCF: 6680 x g
Max. Capacity: 6000ml
Temp. Control: N/A
Product Catagories
Products > Floor Standing Centrifuges
> Large Capacity Centrifuges

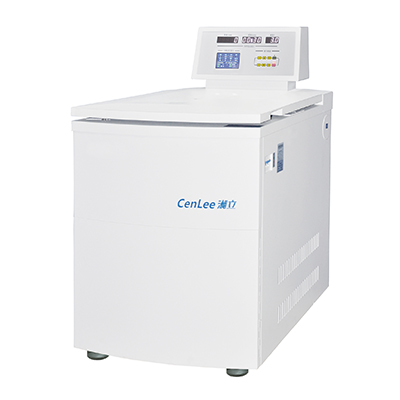

Low Speed Large Capacity Centrifuge
Model: CFL6V
|
Features
- Microcomputer control with user-friendly operational panel and large LCD display. Running parameters can be automatically stored and RCF can be directly set to start the seperation.
- High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running.
- Multistage damping structure for tiny vibration and low noise.
- Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
- Various protection devices including over-speed, lid lock, imbalance shutdown, etc. to ensure the maximum operational safety.
- Unique air guide design offers small temperature rise. Special speed control technology gives fast acceleration and braking for high efficiency.
- Various capacity adapters of 5ml, 7ml, 15ml, 30ml, 50ml, etc. for your option to meet the diverse research needs.
Specifications
| Floorstanding Low Speed Superlarge Capacity Centrifuge, without rotor | |
| Model | CFL6V |
| Max.Speed (r/min) | 6000 |
| Max. RCF (x g) | 6680 |
| Max. Capacity (ml) | 6000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel | 10/10 rates or direct setting of time |
| Programmability | 40 programs |
| Speed Range (r/min) | 100-6000 |
| Speed Control Accuracy (r/min) | ±20 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 35A, 3 phase |
| Dim. (W x D x H) mm | 830 x 720 x 1150 |
| Weight (kg) | 200 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 500 | 6000 | 6680 | 2-500 | Available |
| Fixed Angle Rotor | 2 | 6 x 300 | 6000 | 5650 | 2-300 | Available |
| Swing-out Rotor with wind shield | 3 | 6 x 1000 | 4200 | 5100 | 2-1000 | Available |
