Max. RPM: 5350
Max. RCF: 5030 x g
Max. Capacity: 4 x 750ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Floor Standing Centrifuges
> Large Capacity Centrifuges

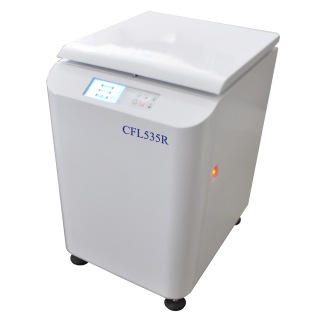

Low Speed Large Capacity Refrigerated Centrifuge
Model: CFL535R
|
Features
- Suitable for a variety of application of radio-immunity, water treatment, biochemistry, pharmaceutical, seperation and purification of blood, etc.
- Superior quality: microprocessor-based controlled and brushless high frequency motor drived.
- With large LCD display and powerful CFC-free refrigeration system, its various optional rotors ensure its versality.
- Multifuntional centrifuge both in high speed and in low speeds with large capacity.
- User-friendly operational panel, parameters memory function for repetitive seperation operation.
- Excellent performence: with unique damping system, 9 acceleration and braking rates plus 1 free braking to fast for efficient sample separation, or slow for protection of delicate samples.
- Safe and reliable operation: automatic rotor recognization fuction, designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
Specifications
| Floorstanding Low-speed Large-capacity Refregerated Centrifuge, without rotor | |
| Model | CFL535R |
| Max.Speed (r/min) | 5350 |
| Max. RCF (x g) | 5030 |
| Max. Capacity (ml) | 3000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel | 10/10 rates or direct setting of time |
| Programmability | 40 programs |
| Refrigeration | Environmental CFC-free Refrigeration System |
| Speed Range (r/min) | 100-5350 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 20A, single phase |
| Dim. (W x D x H) mm | 550 x 680 x 820 |
| Weight (kg) | 190 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 50 | 5350 | 5030 | 1.5-50 | Available |
| Swing-out Rotor(500ml) with round buckets | 2 | 4 x 500 | 4000 | 3040 | 5-500 | Available |
| Swing-out Rotor(500ml) with adapter carries | 4 x 250 | 4000 | 3040 | 1.5-250 | Available | |
| Swing-out Rotor(500ml) with microplate carries | 4 x 2 x 96wells | 4000 | 3040 | 5-10 | Available | |
| Swing-out Rotor(500ml) with baskets | 4 x 24 x 5 | 4000 | 3040 | 5 | N/A | |
| 4 x 37 x 7 | 4000 | 3040 | 7 | N/A | ||
| Microplate Rotor | 3 | 2 x 2 x 96wells | 4000 | 2200 | 0.2 | N/A |
| Swing-out Rotor(750ml) with round buckets | 4 | 4 x 750 | 4000 | 3500 | 5-750 | Available |
| Swing-out Rotor(6 places) with round buckets | 5 | 6 x 250 | 4200 | 3500 | 1.5-250 | Available |
| Swing-out Rotor with round buckets | 6 | 4 x 250 | 4200 | 3500 | 1.5-250 | Available |
