Max. RPM: 8000
Max. RCF: 11740 x g
Max. Capacity: 4 x 2400ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Floor Standing Centrifuges
> Superlarge Capacity Centrifuges

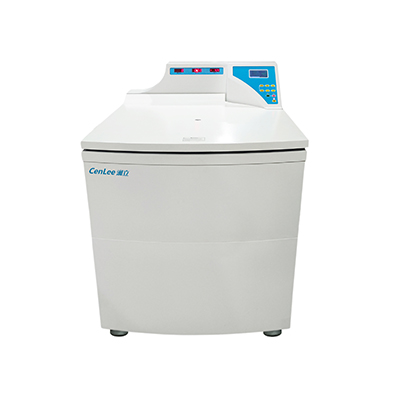

Superlarge Capacity Refrigerated Centrifuge
Model: CFL8R
|
Features
- Microprocessor control, user-friendly operationl panel, LED and LCD dual display, running protocols can be stored automatically, RCF value can be set directly to start runs.
- High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running.
- Multistage damping system and CFC-free compressor from Europe offers tiny vibration, low noise and environmental protection.
- Steel body, stainless steel chamber and imported key components for easy cleaning and durability. Designed with various protection devices for maximum operational safety, such as lid lock system, over-speed detection, over-temperature detection, working life caculation for unit and rotors and so on.
- Pre-cooling design can give fast cooling for the chamber. Proprietary speed control technology ensure its fast acceleration and deceleration for high efficiency.
- Ten(0-9) acceleration and deceleration rates can be called or directly set desired time for accel/decel, and it can store up to 40 runs for repetitive operation.
- Unique braking control technique and rotor design can effectively avoid suspension to ensure getting maximum specimen.
- Super large capacity of 14.4L to maximize your thoughput, e.g. it can process 12 triple or quadruple bloodbags of 400ml or 24 triple bloodbags of 200ml at one run.
- Hold on function for short and quick centrifugation
Specifications
| Floorstanding Superlarge Capacity Refrigerated Centrifuge, without rotor | |
| Model | CFL8R |
| Max.Speed (r/min) | 8000 |
| Max. RCF (x g) | 11740 |
| Max. Capacity (ml) | 14400 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel Rates | 10/10 |
| Programmability | 40 programs |
| Refrigeration | Environmental CFC-free Refrigeration System with R404a refrigerant |
| Speed Range (r/min) | 100-8000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(hr:min:sec) | 0-99:59:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 15A, 3 phase |
| Dim. (W x D x H) mm | 940 x 890 x 1000 |
| Weight (kg) | 380 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 500 | 8000 | 11740 | 0.2-500 | Available |
| Fixed Angle Rotor | 2 | 6 x 1000 | 7000 | 11900 | 0.2-1000 | Available |
| Swing-out Rotor with wind shield | 3 | 6 x 2400 | 4500 | 7000 | 0.2-2400 | Available |
| Swing-out Rotor with wind shield | 4 | 6 x 2 x 1000 | 4000 | 5000 | 0.2-1000 | Available |
