Max. RPM: 25000
Max. RCF: 64800 x g
Max. Capacity: 4 x 1000ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Floor Standing Centrifuges
> Superspeed Centrifuges

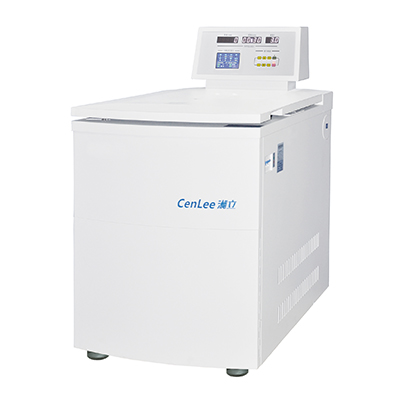

Superspeed Refrigerated Centrifuge
Model: CFH2500R
|
Features
- Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
- Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
- Unique damping system and CFC-free compressor combine to ensure small vibration and low noise.
- Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
- Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
- Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
- Protocols memory function can store up to 40 runs for your repetitive separation.
- Hold on function for short and quick centrifugation.
- Manual reset function. It can euipped with PC interface to achieve interconnection between the centiruge and computer for easy supervision.
Specifications
| Superspeed Refrigerated Centrifuge, without rotor | |
| Model | CFH2500R |
| Max.Speed (r/min) | 25000 |
| Max. RCF (x g) | 64800 |
| Max. Capacity (ml) | 4000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel Rates | 10/10 |
| Speed Range (r/min) | 100-25000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(hr:min:sec) | 0-99:59:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 35A, 3 phase |
| Dim. (W x D x H) mm | 710 x 820 x 1150 |
| Weight (kg) | 320 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 24 x 1.5/2.2 | 25000 | 64800 | 0.2-2.2 | Available |
| Fixed Angle Rotor | 2 | 18 x 10 | 23000 | 60460 | 10 | N/A |
| Fixed Angle Rotor | 3 | 8 x 50 | 21000 | 52356 | 50 | N/A |
| Fixed Angle Rotor | 4 | 6 x 250 | 14000 | 30070 | 250 | N/A |
| Fixed Angle Rotor | 5 | 6 x 500 | 10000 | 17700 | 500 | N/A |
| Fixed Angle Rotor | 6 | 4 x 1000 | 8000 | 12040 | 1000 | N/A |
| Fixed Angle Rotor | 9 | 12 x 50(conical) | 14000 | 30070 | 50 | N/A |
| Swing-out Rotor(750ml) with round buckets | 7 | 4 x 750 | 5000 | 5470 | 5-750 | Available |
| Swing-out Rotor(500ml) with microplate carries | 8 | 4 x 2 x 96wells | 4000 | 3040 | 0.2 | Available |
