Max. RPM: 4000
Max. RCF: 1790 x g
Max. Capacity: 12/24 cards
Temp. Control: N/A
Product Catagories
Products > Special Purpose Centrifuges

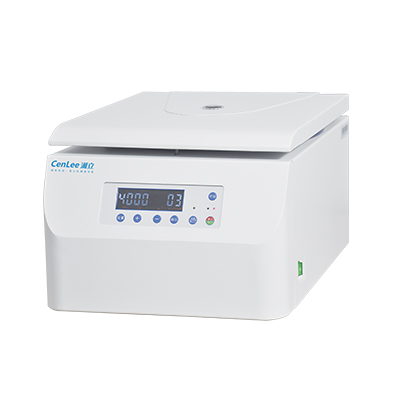

Blood Card Centrifuge
Model: CTD-12K/CTD-24K
|
Features
- Mainly used for testing of blood serum, blood type, minigel column, immunodetection.
- Microprocessor-based controlled and DC brushless motor drived with user-friendly operational panel.
- In automatic RCF/PRM mode, you can set runs to a desired speed or g-force and moniter them in real time.
- Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
- Standard programs for blood type, serum testing have been prestored in it to standardize your clinical research and tests.
Specifications
| Blood Card Centrifuge | ||
| Model | CTD-12K | CTD-24K |
| Max.Speed (r/min) | 4000 | 4000 |
| Max. RCF (x g) | 1790 | 1790 |
| Max. Capacity | 12 cards | 24 cards |
| Control | Microprocessor | Microprocessor |
| Drive | DC Brushless Motor | DC Brushless Motor |
| Speed Range (r/min) | 100-4000 | 100-4000 |
| Speed Control Accuracy (r/min) | ±20 | ±20 |
| Timer Range(min) | 1-99 | 1-99 |
| Noise (dB) | ≤ 55 | ≤ 55 |
| Power Supply V (Hz) | 220/110 (50/60), single phase | 220/110 (50/60), single phase |
| Dim. (W x D x H) mm | 325 x 400 x 240 | 325 x 400 x 240 |
| Weight (kg) | 14 | 16 |
Rotors
| Rotor Type | Rotor No. | Capacity |
Max. Speed (rpm) |
Max. RCF (x g) |
Main Unit |
| Blood Card Rotor | 1 | 12 blood cards | 4000 | 1790 | CTD-12K |
| Blood Card Rotor | 1 | 24 blood cards | 4000 | 1790 | CTD-24K |
