Max. RPM: 3000
Max. RCF: 730 x g
Max. Capacity: 6 x 0.1-0.5ml
Temp. Control: N/A
Product Catagories
Products > Special Purpose Centrifuges

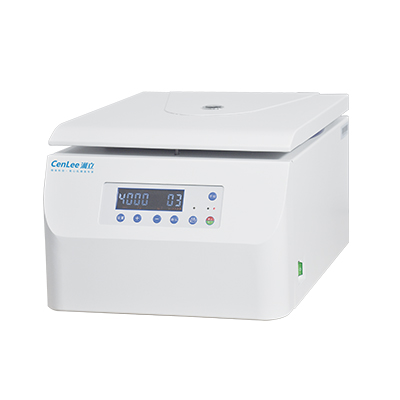

Cytospin Centrifuge
Model: CYJ-6
|
Features
- Steel body.
- Microcomputer controlled and DC brushless motor drived for stable and quiet running.
- User-friendly operational panel with digital display.
- Parameters can be modified during running with no needs to stop.
- In automatic RCF/PRM mode, you can set runs to a desired speed or g-force and moniter them in real time.
- Remaining time is displayed in seconds when it is less than 1 minute.
- Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection, imbalance, and so on.
Specifications
| Cytospin Centrifuge, with rotor | |
| Model | CYJ-6 |
| Max.Speed (r/min) | 3000 |
| Max. RCF (x g) | 730 |
| Max. Capacity | 6 x 0.1-0.5ml |
| Control | Microprocessor |
| Drive | DC Brushless Motor |
| Speed Range (r/min) | 100-3000 |
| Speed Control Accuracy (r/min) | ±30 |
| Timer Range(min:sec) | 1-99:59 |
| Shortest Accel/Decel Time (sec) | 25 / 20 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60),3A single phase |
| Dim. (W x D x H) mm | 325 x 400 x 240 |
| Weight (kg) | 18 |
Rotors
| Rotor Type | Rotor No. |
Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Main Unit |
| Cyto Rotor | 1 | 6 x 0.1-0.5 | 3000 | 730 | CYJ-6 |
