- Microcomputer control with user-friendly operational panel and bright LED display. Running parameters can be automatically stored and RCF can be directly set to start the seperation.
- High frequency brushless motor, equipped with superspeed motor shaft ensures its smooth running and free maintanence.
- Multistage damping structure for tiny vibration and low noise.
- Steel body, stainless steel chamber and imported key components for easy cleaning , corrosion resisting and durability.
- Various protection devices to ensure the maximum operational safety including over-speed, over-temperature, lid lock, imbalance shutdown, unit and rotors life calculation, etc.
- Special high power heater design give fast heating-up. Unique speed control technology ensures fast acceleration and brake for high efficiency.
- 9 acceleration and brake rates are restored for option or direct inputting of acceleration and braking time as you desired. It can memorize up to 40 runs for best seperation.
Product Catagories
Products > Special Purpose Centrifuges

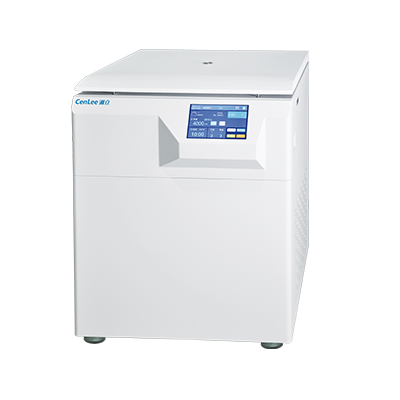

Oil Test Centrifuge
Model: TDL5Y/DL5Y
|
Features
Specifications
| Oil Test Centrifuge,with rotor | ||
| Model | DL5Y | TDL5Y |
| Type | Floor standing | Benchtop |
| Max.Speed (r/min) | 4000 | 4000 |
| Max. RCF (x g) | 4300 | 3100 |
| Max Capacity (ml) | 4 x 100 | 24 x 10 |
| Control | Microprocessor | Microprocessor |
| Drive | DC Brushless Motor | DC Brushless Motor |
| Temp. Set Range (°C) | RT+10 to 80 | RT+10 to 80 |
| Temp. Control Accuracy (°C) | ±2 | ±2 |
| Timer Range(min) | 0-99 | 0-99 |
| Noise (dB) | ≤ 60 | ≤ 60 |
| Power Supply V (Hz) | 220/110 (50/60), 20A single phase | 220/110 (50/60), 20A single phase |
| Dim. (W x D x H) mm | 610 x 720 x 1140 | 520 x 550 x 400 |
| Weight (kg) | 108 | 85 |
Rotors
| Rotor Type | Rotor No. |
Max Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Main Unit |
| Swing-out Rotor | 1 | 24 x 10(oil test tube) | 4000 | 3100 | TDL5Y |
| Swing-out Rotor | 2 | 4 x 100(oil test tube) | 4000 | 4300 | DL5Y |
