Max. RPM: 8000
Max. RCF: 7800 x g
Max. Capacity: 6 x 50ml
Temp.: RT +10oC to 80oC
Product Catagories
Products > Special Purpose Centrifuges

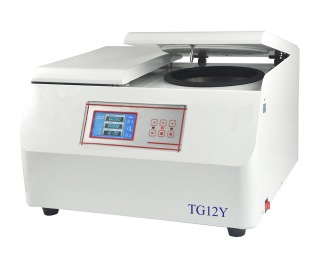

Heated Centrifuge
Model: TG12Y
|
Features
- Microcomputer control with user-friendly operational panel and large LCD or bright LED display for your option. Running parameters can be automatically stored and RCF can be directly set to start the seperation.
- Equipped with circle heater to heat the chamber fast and even. Temperature control system ensure to keep a constant temperature.
- High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running and fast acceleration and braking.
- Multistage damping structure for tiny vibration and low noise.
- Steel body, stainless steel chamber for easy cleaning and durability.
- Various protection devices including over-speed, lid lock, imbalance shutdown, etc. to ensure the maximum operational safety.
Specifications
| Heated Centrifuge, without rotor | |
| Model | TG12Y |
| Max.Speed (r/min) | 12000 |
| Max. RCF (x g) | 14800 |
| Max Capacity (ml) | 300 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor |
| Temp. Set Range (°C) | RT+10 to 80 |
| Temp. Control Accuracy (°C) | ±2 |
| Timer Range(min:sec) | 0-999:59 |
| Noise (dB) | ≤ 60 |
| Power Supply V (Hz) | 220/110 (50/60), 18A single phase |
| Dim. (W x D x H) mm | 640 x 680 x 380 |
| Weight (kg) | 95 |
Rotors
| Rotor Type | Rotor No. |
Max Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angel Rotor | 1 | 12 x 10 | 12000 | 14800 | 1.5-10 | Available |
| Fixed Angel Rotor | 2 | 12 x 15 | 10000 | 10200 | 1.5-15 | Available |
| Fixed Angel Rotor | 3 | 6 x 50 | 8000 | 7800 | 1.5-50 | Available |
